Animation as a pure function of time.

kinemo is a Python library for explanatory animations: math, algorithms, engineering, data. Your script runs once and compiles to a timeline. A Rust core evaluates any instant of it, so the preview scrubs without re-running your code, renders spread across cores, and the same source gives the same pixels.

Install Read the guide

examples/derivative.py

1import kinemo as k2 3 4def f(x: float) -> float:5    return 0.15 * x**3 - 0.9 * x + 1.56 7 8@k.scene9def derivative(s: k.Scene):10    ax = k.Axes(x=(-3, 3, 1), y=(-1, 5, 1), grid=True, labels=("x", "y")).place(at="center")11    x = k.signal(-2.0)12    curve = ax.plot(f, color=k.YELLOW)13    dot = k.Dot(r=0.1, fill=k.RED).place(at=curve.point_at(x))14    tan = curve.tangent_at(x, length=3, stroke=k.RED)15    label = k.Text(lambda: f"f'({x():.1f}) = {curve.slope_at(x)():.2f}", size=0.35).place(at="top", margin=0.6)16    s.play(k.draw(ax), k.draw(curve))17    s.play(k.fade_in(dot, tan, label), duration=0.5)18    s.play(x.to(2.5), duration=3)19    s.play(ax.zoom_to(x=(0, 3), y=(0, 4)), duration=1.5)20    s.wait(0.5)

0.00 s / 7.00 s

0s1s2s3s4s5s6s7s

The bars are this scene's timeline, as kinemo check reports it. Click one to jump there: the line that scheduled it lights up. Drag the track to scrub.

One build, then any frame

The scene function is not a render loop. It runs once and produces data: a serializable scene of signals with timelines. Everything after that is native code reading that data.

Build

Python runs your scene function once. s.play and s.wait move a cursor; objects, signals and animations are recorded, not drawn.

python/kinemo
Resolve

Events and handlers (k.when, s.wait_for, simulations) are settled to a fixed point, then visual lints sample the result.

kinemo-resolve
Evaluate

Any instant, on demand: timelines and easing, traced expressions, constraint layout, shaped text, LaTeX through typst.

kinemo-eval, kinemo-layout, kinemo-text, kinemo-math
Render

A display list rasterized by tiny-skia (Vello on the GPU for the preview), encoded by ffmpeg to MP4, WebM, MOV or GIF.

kinemo-render, kinemo-encode

What that buys you

Scrubbing is free. The preview asks the Rust server for the frame at t; Python is not involved until you save.

Lambdas are compiled, not called. k.Text(lambda: f"{x():.1f}") and .map(...) are traced once into native expressions. Opaque Python is allowed, explicitly, through k.python(fn).

Reproducible to the byte. The CPU renderer is the reference: the golden frames in the test suite are compared byte for byte, and video uses bitexact encoder flags.

The timeline, without rendering

$ kinemo check derivative.py
derivative.py — scene 'derivative' — 7.0 s — ok
timeline
   0.00– 1.00  draw(ax), draw(curve)                    derivative.py:16
   1.00– 1.50  fade_in(dot, tan, label)                 :17
   1.50– 4.50  x.to(value)                              :18
   4.50– 6.00  ax.to(x_range, y_range)                  :19

Mistakes come with the fix

Every problem has a stable code, the offending line and the related one, the instant on the timeline and numbered fixes. kinemo check --fix applies the safe ones, kinemo explain K0401 gives the long form, and Manim habits are recognized and translated.

$ kinemo check constraint.py
constraint.py — scene 'constraint' — — — 1 error
errors
  K0401 error: 'title' cannot animate x: the axis is held by a constraint
    --> constraint.py:9    s.play(title.to(x=3))
    --> constraint.py:7    title = k.Text("hypotenuse", size=0.5).place(above=tri, gap=0.3)   ← constraint here
     t = 0.00 s
    fix 1: change the constraint with an animation
           s.play(title.to_place(right_of=...))
    fix 2: release it and animate freely
           s.play(title.to(x=..., unpin=True))
    more: kinemo explain K0401

$ kinemo check manim.py
manim.py — scene 'manim_habits' — — — 1 error
errors
  K1101 error: 'Create' is a Manim name. In kinemo: k.draw(obj)
    --> manim.py:7         s.play(Create(circle))
    fix: use
           k.draw(obj)
    more: kinemo explain K1101

Edit the code from the preview

kinemo dev scene.py opens a browser preview with hot reload. Click an object and every prop says where it came from: the line that wrote it, or default. Literals are editable with a widget for their type, and the edit goes back to your file.

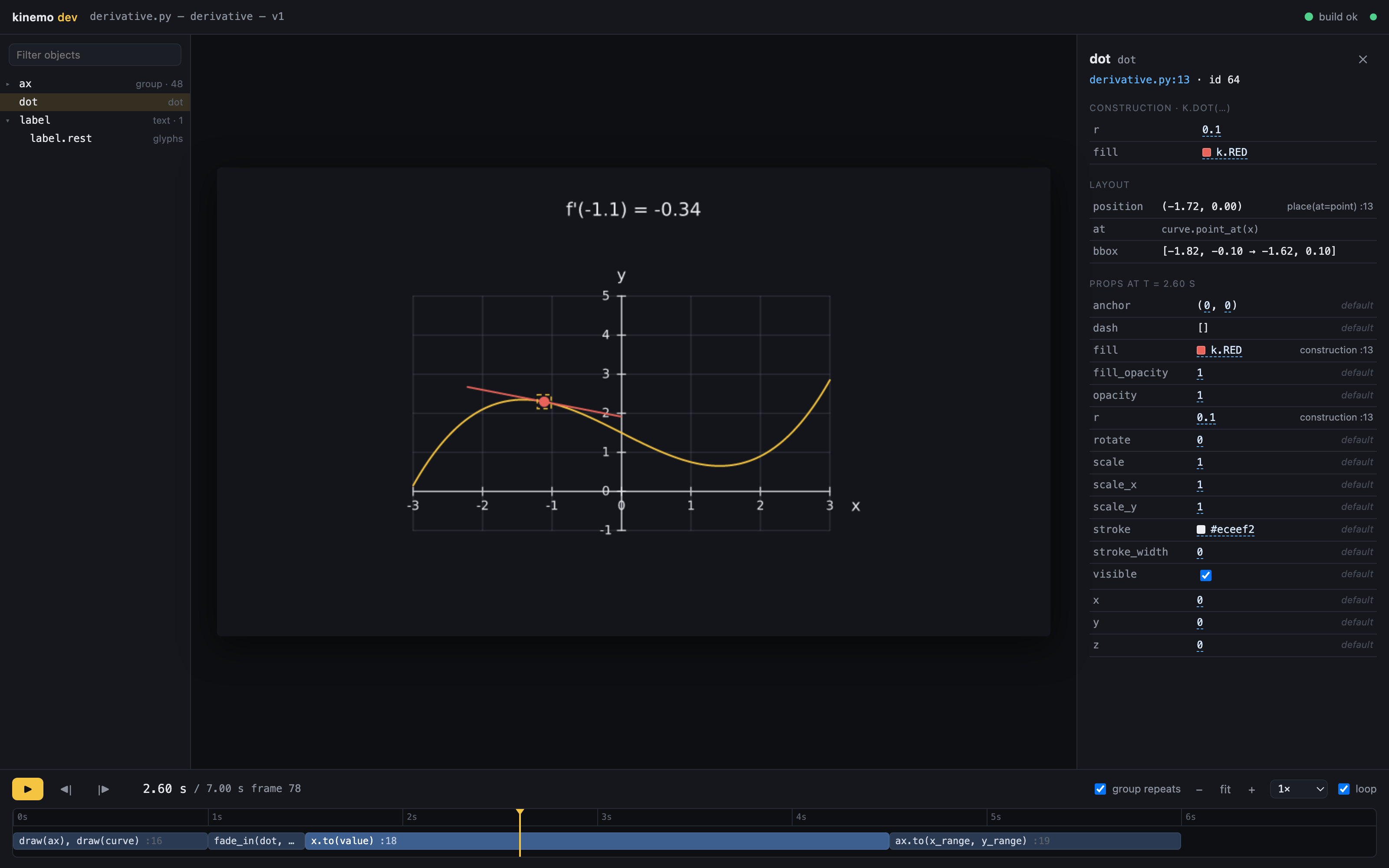

The kinemo dev preview: the outliner, the frame of a tangent sliding on a curve with the dot selected, the inspector listing the dot's props with their source lines, and the timeline below.

Drag a number and the scene rebuilds from the edited text as you move; the file is written once, when you let go.
Selects for enumerations, a palette for colors (written as k.RED), two fields for points, the k.ease curves for easings.
Only the literal's characters change. Formatting and comments stay yours, and a value your code computes is shown, not overwritten.
Drag the selected object on the frame to rewrite the position that places it.

examples/derivative.py, line 13, after dragging the dot's radius

-    dot = k.Dot(r=0.1, fill=k.RED).place(at=curve.point_at(x))+    dot = k.Dot(r=0.18, fill=k.RED).place(at=curve.point_at(x))

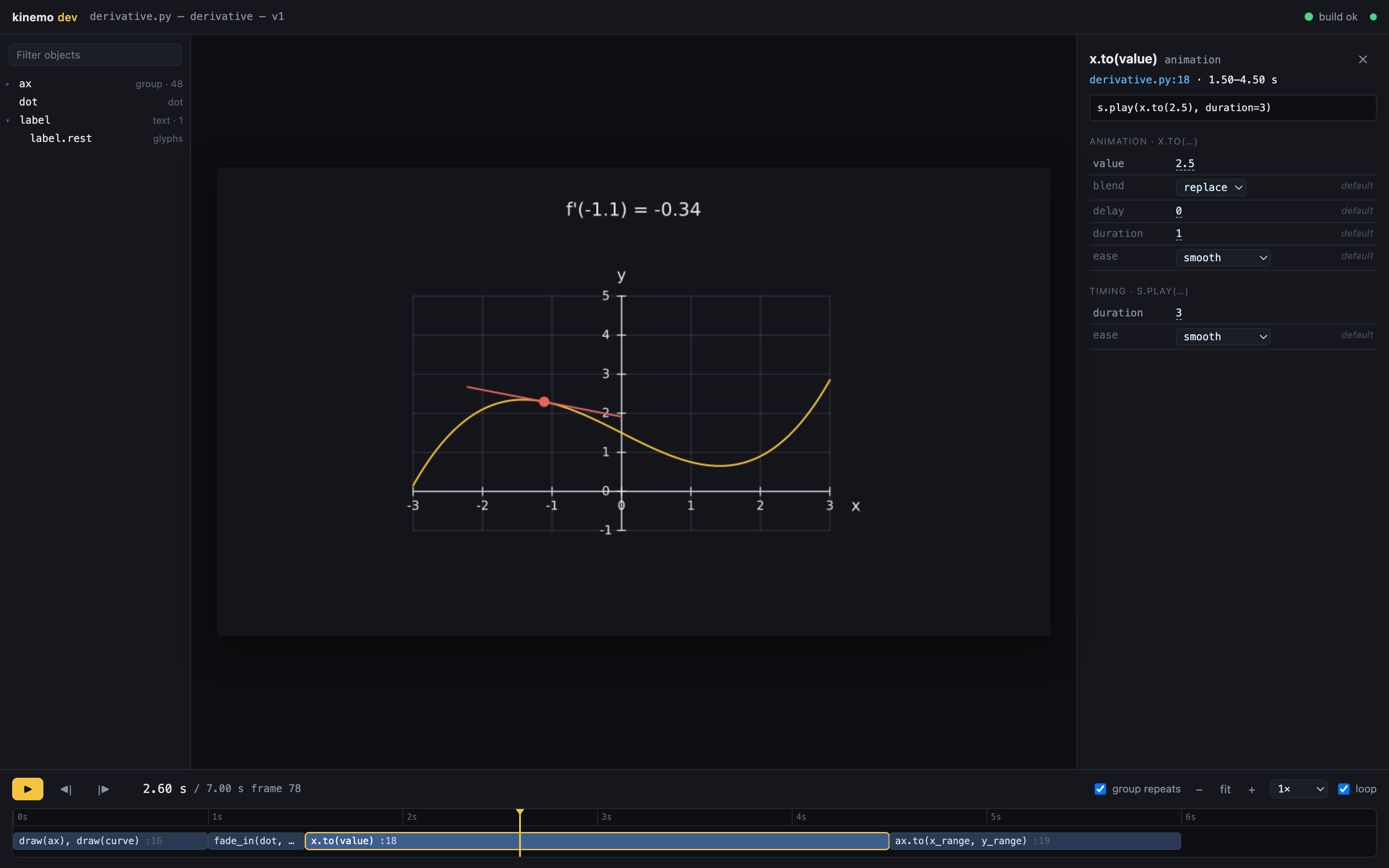

The preview with a timeline bar selected: the inspector shows the code of the play call, the arguments of the animation and of the play call, each editable. — Click a timeline bar for the arguments of its call and of the `s.play` that scheduled it, including the ones it leaves out, with their defaults.

Examples

Complete scenes from the repository. Each one passes kinemo check --strict, runs in the test suite and was rendered by kinemo for this page. Hover to play.

Budgets, measured

The test suite fails when kinemo misses these. The right column was measured when this site's data was exported (Linux x86_64, Python 3.13, best of several runs).

What	Budget	This build
import kinemo	< 150 ms	106 ms
kinemo check, bubble sort (build, resolve, lints)	< 300 ms	108 ms
rebuild after a save, a day of solar power with events	< 500 ms	53 ms
one preview frame at draft quality	< 30 ms	4.4 ms
final 1080p render of 11.6 s of video	≥ real time (1×)	0.9× real time

Readable by people and by agents

The API has one form per concept and full typing, so code written by a model checks the same way yours does. Agents close the write, verify, fix loop without needing vision:

kinemo check --json and kinemo inspect --json report the timeline, diagnostics and scene graph as stable JSON.
kinemo snap scene.py --at 2.5 writes the frames worth looking at.
kinemo mcp serves check, inspect, snap, docs and explain over the Model Context Protocol.
llms.txt is the whole API in one file, generated from the code.

$ kinemo check hello.py --json
{
  "file": "hello.py",
  "scenes": [
    {
      "name": "hello",
      "ok": true,
      "duration": 3.5,
      "timeline": [
        {
          "start": 0.0,
          "end": 1.0,
          "label": "write(title)",
          "file": "examples/hello.py",
          "line": 7
        },
        {
          "start": 1.0,
          "end": 2.0,
          "label": "title.to(fill, scale)",
          "file": "examples/hello.py",
          "line": 8
        }
      ],
      "diagnostics": []
    }
  ]
}

Install

Wheels for Linux, macOS and Windows, Python 3.11 or newer. Video output needs ffmpeg on your path.

Install kinemo
```
pip install kinemo
```
The extras kinemo[numpy] and kinemo[polars] pull in the data libraries the charts can read.
Start a project
```
kinemo new hello
cd hello
```
It creates scene.py, kinemo.toml and a strict pyrightconfig.json.

Preview, check, render

kinemo dev scene.py      # live preview
kinemo check scene.py    # errors and timeline, no rendering
kinemo render scene.py   # MP4; also webm, mov, gif, png, slides

Build from source

With a stable Rust toolchain and uv, from a checkout of the repository (--features gpu adds the GPU preview):

uv venv .venv
uv pip install --python .venv/bin/python maturin
source .venv/bin/activate
maturin develop --release

Next: Getting started, the first of fifteen short guides, or the API reference.
